Expansion Port Adapter for Commodore C64 machines, both breadbin and C64C. Originally designed for Easyflash3 cartridges, but you can use with any cards! It can change the machine’s expansion port degree with 90º, or with other words: it can be angled the expansion port! The final pcb’s color are black with white labels as always.
At the right side it has a push momentary button which is a built-in reset for the C64. This way you can do a hard-reset with no card inserted (or inserted of course) and also no need to drill your original commodore case for ugly reset buttons. The other side contains a power led (color: warm white) which can be brightened with the trimmer potentiometer.

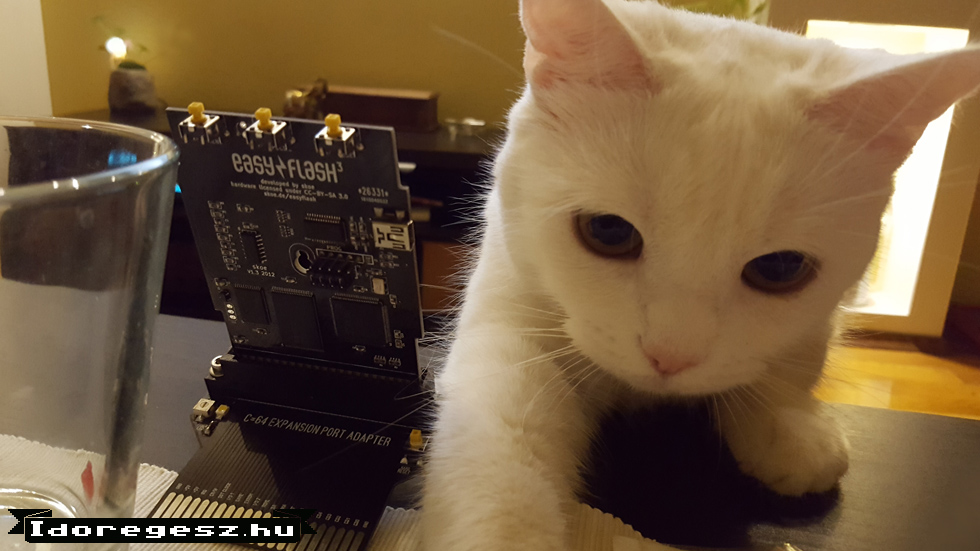

Expansion port adapter working well with 1541 Ultimate II+ and Easyflash3 too! Tested, 100%!
Panel assembled with high quality EDAC connector (it has gold plated pins for long purpose), OMRON momentary press button, tantalum electrolytic capacitors, and other quality parts. It has a double brass hexagon standoff at the sides, underneath to prevent connecting your cartridge and/or pressing the reset switch if attached to your machine. Expansion Port Adapter is compatible with all types of cartridges…
